Tutorial¶

This tutorial describes in detail how to use the gridwxcomp Python package including preparation of input data, downloading gridded data and pairing it with station weather data, calculating monthly bias ratios between station and gridded data, spatial interpolation of point results, and generating interactive graphics files.

# module and function imports
import pandas as pd
import numpy as np

from gridwxcomp import prep_metadata
from gridwxcomp import calc_bias_ratios
from gridwxcomp import download_grid_data
from gridwxcomp import prep_metadata
from gridwxcomp import spatial
from gridwxcomp import plot

Input data files and formatting requirements¶

There are three input files used by gridwxcomp, they include:

configuration text file [.INI]
text or Microsoft Excel files containing time series of station weather data [.CSV, .XLS, XLSX]
text file containing metadata regarding the weather stations [.CSV]

An example of each of these files is included in with this package, they can be found in the “example_data” folder in the package after installation, if you installed using PiP you can find the path to the example data station metadata file where the other example data also exists (in the same directory) by running:

import pkg_resources; print(pkg_resources.resource_filename('gridwxcomp', 'example_data/Station_Data.txt'))

Or you can directly download the example files from GitHub here.

Tip

To follow this tutorial it is recommended to start a Python script or Jupyter Notebook from within the provided “example_data” folder.

The configuration file¶

The configuration file is a text file with the “.INI” extension and is read using the Python configparser.ConfigParser class to read in metadata about the control parameters that the user specifies for gridwxcomp. This file contains key control parameters for a gridwxcomp workflow such as which gridded data to download, coordinate references system and domain for interpolation, and variable names and units.

The configuration file has three sections, METADATA, DATA, and UNITS, and these sections are defined by there names inside of brackets, e.g., the units section comes after the line that contains the text “[UNITS]”.

The METADATA section includes information on the spatial domain, resolution, and projection for spatial interpolation of results, as well as the name of the gridded dataset to download from Google Earth including the dataset’s collection path and start and end date of data to download. Most of these options are self explanatory, here is an example METADATA snippet from the provided example configuration file that was built to download gridded data from the CONUS404 dataset:

[METADATA]
# Projection information
#   gridwxcomp will reproject point data to WGS84 geographic for consistency with
#   point data that is downloaded from Google Earth Engine, if the input coordinates
#   are not already in WGS84 decimal degrees then specify they are in here using EPSG
#   or ESRI code. The "grid_resolution" parameter refers to an optional fishnet grid
#   that can be created by gridwxcomp which is always created in the WGS 84 geographic
#   coordinate reference system, hence the resolution is in decimal degrees. gridwxcomp
#   can also reproject point data for the generation of a point shapefile containing
#   bias results and before performing spatial resolution.
#   Finally the interpolated rasters are reprojected back to WGS 84 and resampled once
#   more using the output_data_resolution parameter (degrees). The example values
#   shown below refer to WGS 84 (EPSG:4326) geographic coordinate system and the
#   Lambert Conformal Conic (ESRI:102004) projected coordinate system, and these are the
#   default options if the user forgets to specify the parameters in the config file.
input_data_projection = EPSG:4326
grid_resolution = 0.1
interpolation_projection = ESRI:102004
interpolation_resolution = 1000
output_data_resolution = 0.1


# Bounding information
#    The bounds/extents for the interpolation area in decimal degrees.
xmin = -111.8708332996666428
xmax = -108.6208332996662733
ymin = 38.0874999999668162
ymax = 40.5874999999666741


# Gridded dataset information
#   Specify the Earth Engine image collection you'd like to use for comparison.
#   collection_name will be used in the generation of filenames
#   You may also specify the start and end dates (Format: YYYY-MM-DD) of the data to download.
#   If the dates are left blank then gridwxcomp will generate these values automatically.
collection_name = conus404
collection_path = projects/openet/assets/meteorology/conus404/daily
start_date =
end_date =


# File structure information
#   These values are necessary for gridwxcomp to parse the data files.
#   Use 'station' for observed and 'gridded' for any model data
#   Anemometer height required in meters
station_anemometer_height = 2
station_lines_of_header = 1
station_missing_data_value = nan

gridded_anemometer_height = 10
gridded_lines_of_header = 1
gridded_missing_data_value = nan

Note

The station and gridded data wind speed height (anemometer height) are needed so that the wind speed data can both be scaled to 2 m using the logarithmic vertical velocity profile, see equation 33 in [Allen2005].

Weather variables processed by `gridwxcomp`¶

The available input options for weather variables and their units currently allowed by gridwxcomp are as follows:

Variable

Description

Allowable Unit(s)

tmax, tmin, tdew

maximum, minimum and dew point air temperature

c, f, k

rs

solar radiation

kw-hr/m2, j/m2, mj/m2, langleys, w/m2

wind

wind speed

m/s, mph, kmph

ea

vapor pressure

kPa, torr, mbar

rhmax, rhmin, rhavg

maximum, minimum and average relative humidity

percent, fraction

eto, etr

short (grass) and tall (alfalfa) ASCE standardized reference ET

inches, mm

The converted weather variables will not be written to files, they are converted so that the pairing of station:gridded data can be done before computing and saving average bias ratios or temperature differences.

The weather station’s data files¶

Files containing daily time series of weather station data are the key input to gridwxcomp. These files should be formatted as comma separated variable [.CSV] text files or Microsoft Excel files [.XLS or . XLSX]. The names of variables that can be used by gridwxcomp should be listed in the configuration file and they should match the data as they are found in the weather station and gridded data file headers. Here is an example of the first three rows and first seven columns of an example weather station data:

date	TAvg (C)	TMax (C)	TMin (C)	TDew (C)	Vapor Pres (kPa)	RHAvg (%)
2013-11-07 00:00:00	4.382	15.83	-4.331	-4.7	0.431	55.25
2013-11-08 00:00:00	4.005	19.3	-7.252	-5.65	0.401	55.65
2013-11-09 00:00:00	3.019	19.1	-6.842	-4.98	0.422	54.95

Tip

The “date” column in the provided weather data will be parsed by pandas and should be in a format that is able to automatically converted to a datetime.datetime object using the pandas.to_datetime function. For example, “YYYY/MM/DD” or “YYYY-MM-DD HH:MM:SS”.

The weather station’s metadata file¶

Within the same folder of the station weather data files the user must provide a text file [.CSV] that lists all the weather stations that are to be included in the gridwxcomp routines and for each station, this file lists some key metadata. There are four columns that are required by gridwxcomp to be provided in this file: ‘Latitude’, ‘Longitude’, ‘Filename’, and ‘Station’. Filename refers to the name of the weather station data file, e.g., “BedrockCO_Daily_output.xlsx”. The “Station” column should contain the ID that the user wants to use for that station and this will be used for output file names that apply to that station and in different outputs, e.g., the ID given to to the stations in the bias ratio files and point shapefiles. Here is an example of a station metadata file with the four required columns:

Station	Latitude	Longitude	Filename	Elev_FT
Bluebell (Neola Area)	40.3723213601075	-110.209184085302	BluebellUT_Daily_output.xlsx	6186
Loa	38.3834675639262	-111.635832870077	LoaUT_Daily_output.xlsx	7116
Bedrock	38.328297440752	-108.855494308994	BedrockCO_Daily_output.xlsx	4973
Castle Valley near Moab	38.6429447999517	-109.398808843297	CastleValleyUT_Daily_output.xlsx	4687

Tip

Any additional columns that exist in the weather station metadata file will be retained and added to the formatted output CSV file that is produced by the gridwxcomp.prep_metadata function. However they will not be used by any of the following procedures, only the four required columns’ values are used (‘Latitude’, ‘Longitude’, ‘Filename’, and ‘Station’). In the exampe above, the extra columns that were provided are “Elev_FT” and “Location”.

Step 1: Parse input data¶

The first step to running gridwxcomp after preparing the required input data as specified in Input data files and formatting requirements is to run the gridwxcomp.prep_metadata function which reads the station metadata file and prepares for downloading gridded data. This step is straightforward with minimal options involved:

# specify the paths to input data files, in this case using the provided example data:
station_meta_path = '/path/to/gridwxcomp/gridwxcomp/example_data/Station_Data.txt'
conus404_config = '/path/to/gridwxcomp/gridwxcomp/example_data/gridwxcomp_config_conus404.ini'
gridded_dataset_name = 'conus404'

# run the function
prep_metadata(station_meta_path, conus404_config, gridded_dataset_name)

The file that was produced from running gridwxcomp.prep_metadata is named “formatted_input.csv” by default and it will be saved to the workspace where the function is called from unless otherwise stated in the . It has updated the paths to the station weather data and reformatted the station metadata file. This will be the input file used for the next two steps in the gridwxcomp workflow which are gridwxcomp.ee_download and gridwxcomp.calc_bias_ratios.

Step 2: Download gridded timeseries data from Google Earth Engine¶

After running gridwxcomp.prep_metadata the next step is to use the formatted CSV file that was created alongwith the configuration input file as input to download the specified gridded data that corresponds with the locations and variables of the weather stations. Some of that required information is in the configuration file, such as the dataset collection path on Google Earth Engine and its name. Some data required to download Earth Engine gridded climate data needs to be specified as arguments to the gridwxcomp.ee_download.download_grid_data function, such as the bucket to export the extracted point time series data to and the local folder to download the same data to.

Important

If you haven’t set up your Google Earth Engine Python API, and authenticated your account, this must be done before proceeding with the tutorial. Please see the instructions in the ::ref::Google Earth Engine setup section <gee>.

Note

The example data used in this tutorial downloads gridded data from the CONUS404 dataset which is hosted by OpenET on Google Earth Engine, it is a public asset and as long as you have access to Google Earth Engine you should have no issues accessing the data. The export path that is specified in the tests will be automatically created and you must have authenticated and initialized Google Earth Engine for Python before running the tests.

Step 3: Calculate monthly, seasonal, and annual station:gridded biases and statistics¶

After parsing the input station weather data and configuration options, and downloading the corresponding gridded weather data of choice, the next step in the gridwxcomp workflow is computing station:gridded biases. This process involved pairing the station and gridded time series together for overlapping time periods, making necessary unit conversions, and computing monthly, seasonal, and annual average bias ratios (or differences for air temperature) between the station and gridded data for each variable that is available or specified. Additional metrics are calculated that are helpful to evaluate the variability in the station:gridded ratios such as the annual standard deviation and coefficients of variation for the bias ratios or differences, as well as the number of paired data points used to compute the bias ratios or differences. In addition to calculating long-term average monthly bias ratios or differences between station:gridded data, summer periods (JJA), growing season (AMJJASO), and annual periods are also used for computing the metrics.

To run the bias corrections, the gridwxcomp.calc_bias_ratios reads the formatted metadata file created by gridwxcomp.prep_metadata and the configuration file. The user should also specify the folder to save the output file, which variable to use for the calculations from the list of available variables: see Weather variables processed by gridwxcomp, the maximum number of gaps days per month allowed for computations (day_limit kwarg to gridwxcomp.calc_bias_ratios, default is ten days maximum of gap days), and the year range to use for the calculations in case one is not interested in using the full data record.

There are two methods for calculating the bias ratios or differences, the “long_term_mean” and the “mean_of_annual”. The default method (method='long_term_mean') first groups the paired station and gridded data for each time period (monthly, etc.) and then takes the average of station and gridded data respectively before taking the ratio or difference, for example,

\[\frac{ \frac{\sum_{i=1}^{n} station_i}{n}} {\frac{\sum_{i=1}^{n} grid_i}{n}}\]

where \(station_i\) and \(grid_i\) are the \(i^{th}\) paired daily weather data in the full record for a given temporal period, such as all the summer days or all the days that fall within the month of May. For air temperature variables, as opposed to taking the ratio the calculation is

\[\frac{\sum_{i=1}^{n} station_i}{n} - \frac{\sum_{i=1}^{n} grid_i}{n}.\]

The other option for calculating the bias ratios or temperature differences between station and gridded data (method='mean_of_annual') is similar except it makes the calculation as shown above for each year in the paired data record separately, and then it takes the average of those annual ratios or differences. This approach is always used for calculating the statndard deviation and coefficient of variation variables that are also computed by the gridwxcomp.calc_bias_ratios function.

This example code uses the default methods for calculating the station:gridded point bias statistics:

# directory to save results of point calculations
output_dir = 'test_data_bias_results'

calc_bias_ratios(
    input_path=formatted_input_file,
    config_path=conus404_config,
    out_dir=output_dir,
    method='long_term_mean',
    comparison_var='wind'
)

Here is a selection of the results for the month of January from the output CSV file that was created which was named “wind_summary_comp_all_yrs.csv”:

STATION_ID	Jan_mean	…	Jan_count	…	Jan_stdev	…	Jan_cv
Bluebell (Neola Area)	0.648012105097692	…	62	…	0.108	…	0.163
Loa	1.15758848442987	…	62	…	0.001	…	0

The file retains the structure of the station metadata that was previously reformmated by the gridwxcomp.prep_metadata and gridwxcomp.ee_download.download_grid_data, in that it each rows refers to a distinct weather station and any metadata that was in the original station metadata file created by the user is retained. There are four major variables calculated by gridwxcomp.calc_bias_ratios that were added to this file, they are the long-term mean bias ratios (suffix “_mean”), the count of paired days used in those calculations (suffix “_count”), the standard deviation of the annual bias ratios or differences (suffix “stdev”), and the coefficient of variation (suffix “_cv”).

At this step in the normal workflow of gridwxcomp the output file created by gridwxcomp.calc_bias_ratios can be used for spatial mapping of point data and interpolation of the results using the gridwxcomp.spatial module.

Spatial mapping and interpolation of station:gridded bias results¶

One of the key functionalities of gridwxcomp is the ability to spatially map and interpolate point data of station:gridded bias. The point bias and variability statistics that have been produced using the gridwxcomp.calc_bias_ratios is the main input to the spatial functions along with geographic reference system information that is defined in the configuration file.

Mapping point data¶

It is useful to make a 2-D map of station point data results from the bias correction calculations. The gridwxcomp.spatial.make_points_file offers a quick routine for making a georeferenced point vector file (shapefile) of the station results using the data output from gridwxcomp.calc_bias_ratios:

# path to output from calc_bias_ratios
bias_ratios_file = '/path/to/gridwxcomp/my_specific_tests/test_data_bias_results/wind_summary_comp_all_yrs.csv'

# make point shapefile
spatial.make_points_file(bias_ratios_file)

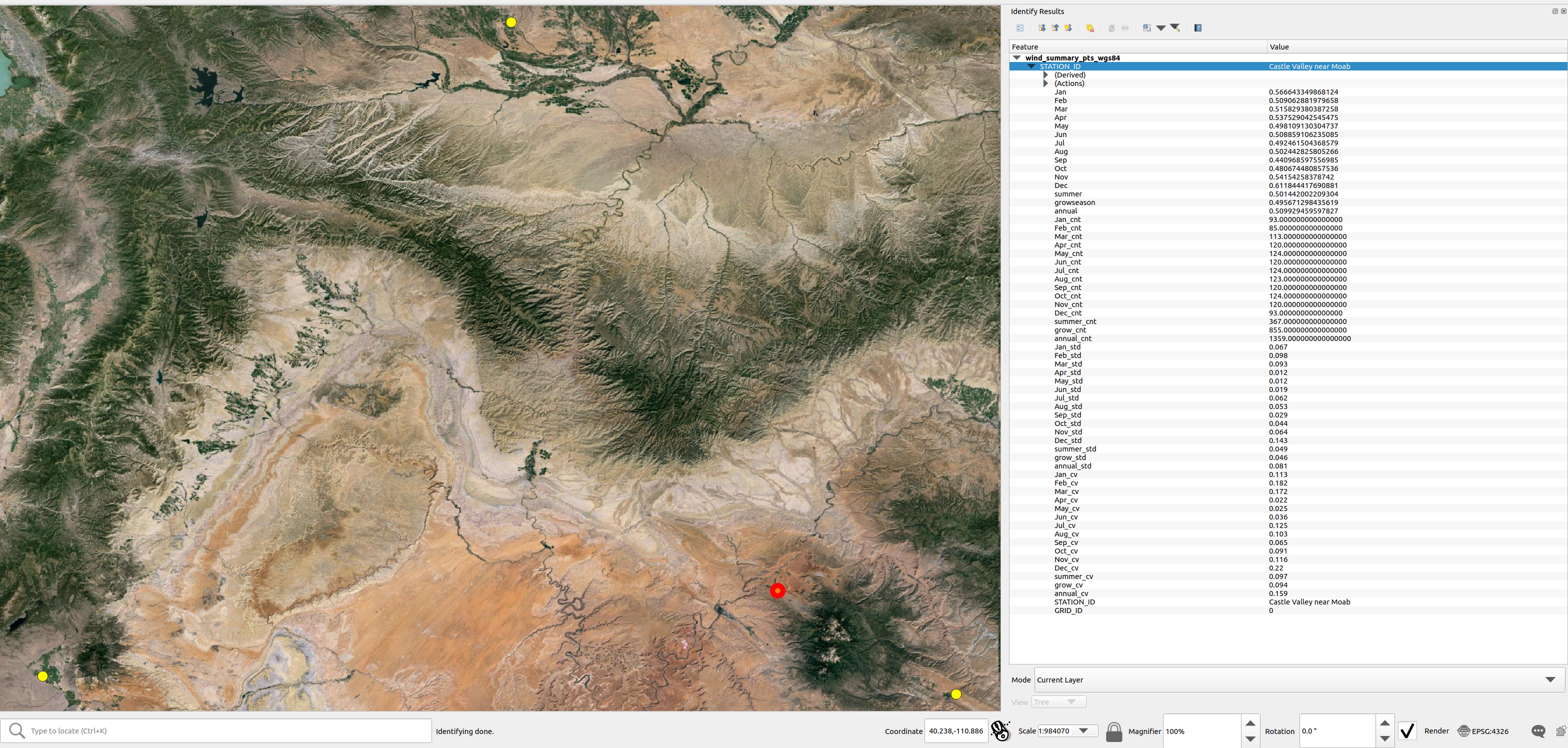

Here is a screenshot of the resulting shapefile in QGIS:

Two shapefiles files were output from this function, one in the WGS84 geographic coordinate system and another in the coordinate reference system that the user supplied in the configuration file as defined by the “interpolated_projection” parameter in the METADATA section, see The configuration file. The coordinate reference system will be added as a suffix to the two shapefiles, in this case the files are named “wind_summary_pts_wgs84.shp” and “wind_summary_pts_ESRI_102004.shp” respectively. As shown in the screenshot the average monthly, seasonal, and annual ratios, day counts, standard deviation, and coefficient of variation statistics are included in these shapefiles.

Caution

If the “interpolation_projection” parameter is not specified in the configuration file, gridwxcomp will default to use the Lambert Conformal Conic “ESRI:102004” projected space for spatial interpolation. The LCC projection is useful for minimizing distortion for larger interpolation areas, particularly those that span areas that cross larger distances from east-to-west, as opposed to north-south.

Making a fishnet polygon (grid) around stations¶

The gridwxcomp.spatial.make_grid function offers a quick way to make a uniform (square) fishnet or grid polygon file that is defined by the output and grid resolution parameters set in the configuration file. The grids coordinate reference system will be WGS 84 and therefore the grid_resolution and bounds parameters in the configuration file should be in decimal degrees.

This is an optional step that is only used again by gridwxcomp if the user sets the z_stats==True kwarg to the gridwxcomp.spatial.interpolate function, that option will conduct zonal averages of the interpolated bias surfaces using the grid produced by gridwxcomp.spatial.make_grid.

# Example making the spatial grid
spatial.make_grid(bias_ratios_file, conus404_config)

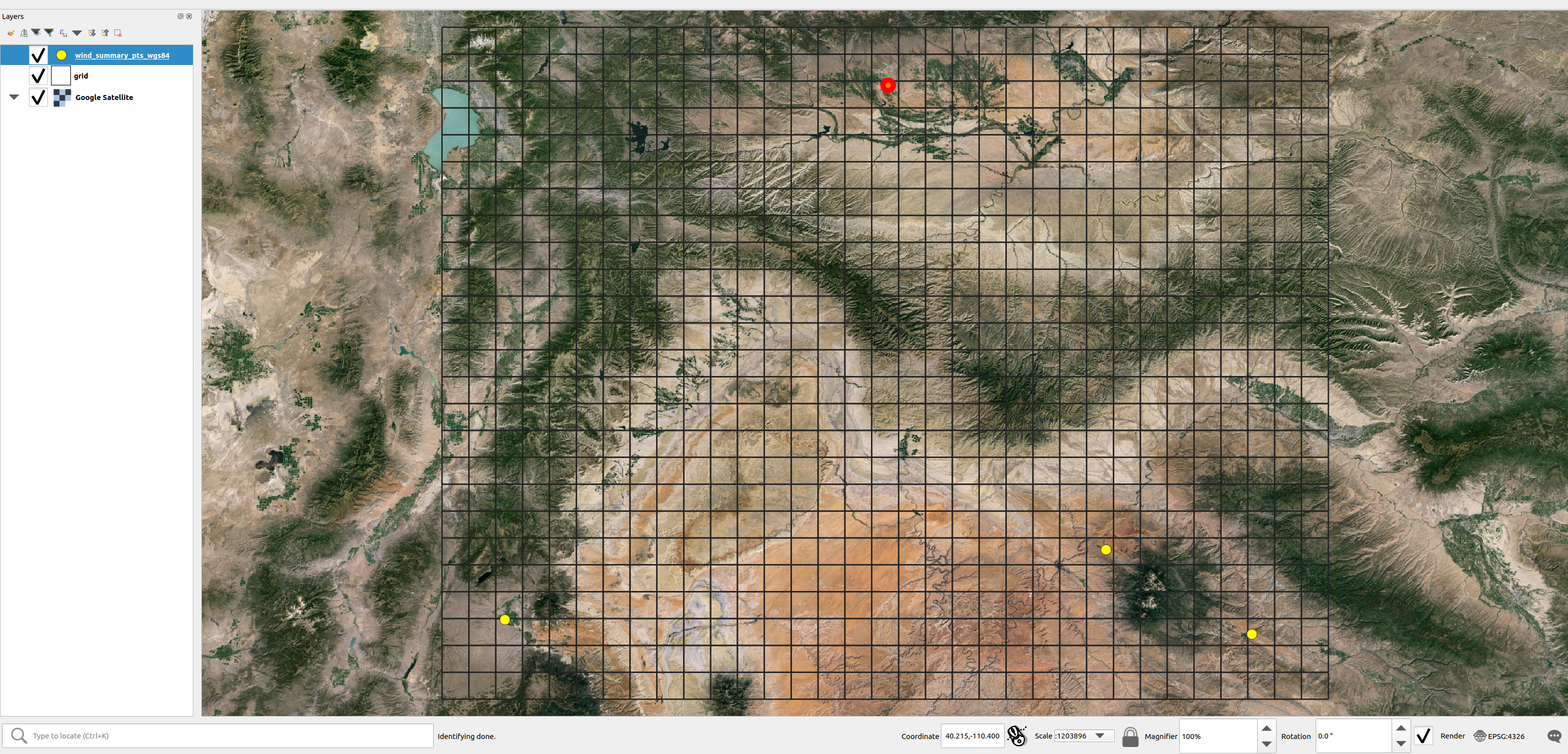

Here is a screenshot of the resulting grid shapefile in QGIS:

Spatial interpolation of point bias¶

One of the key features of gridwxcomp is its ability to perform spatial mapping of bias results between station and gridded weather data using the scatter point data previously calculated at the station locations. The gridwxcomp.spatial.interpolate function has the ability interpolate the point bias data calculated by the gridwxcomp.calc_bias_ratios function using the options that are available from GDAL grid, those options are the following:

‘average’
‘invdist’ (inverse distance weighting)
‘invdistnn’ (inverse distance weighting with \(n\) nearest neighbors)
‘linear’
‘nearest’

The interpolation of point data will be conducted using the projected coordinate reference system and resolution (meters) that was specified for interpolation in the configuration file, the default if not specified is Lambert Conformal Conic (ESRI:102004) projection and 1000 m resolution. For convenience, the gridwxcomp.spatial.interpolate function offers the scale_factor argument to quickly scale the interpolation resolution that is specified in the configuration file.

The outputs of the gridwxcomp.spatial.interpolate function include:

georeferenced raster images of the interpolated surfaces for the specified variables
a point shapefile in the interpolated reference system updated with point residuals and interpolated values
a CSV file with the station:gridded bias results updated with point residuals and interpolated values
a bar plot with point residuals
an (optional) CSV file with zonal statistics based on the fishnet the grid produced by the gridwxcomp.spatial.make_grid function.

Two versions of the interpolated rasters are created for each variable specified (e.g., the monthly or seasonal station:gridded bias ratios for a given weather variable). One raster is created and saved using the coordinate reference system and resolution as specified for interpolation in the configuration file, and the other raster will be reprojected to WGS 84 geographic reference system and bi-linearly resampled using the “output_data_resolution” parameter (degrees) as specified in the configuration file. For example, using the defalt projections and resolution, if the user ran the following code the resulting output file structure would be created:

# The default interpolation method with only one layer (annual) being interpolated
spatial.interpolate(bias_ratios_file, conus404_config, layer="annual", z_stats=True)

wind_invdist_1000_meters/
├── annual_ESRI_102004.tiff
├── annual.tiff
├── residual_plots
│   └── annual_res.html
├── wind_summary_comp_all_yrs.csv
├── wind_summary_pts_ESRI_102004.cpg
├── wind_summary_pts_ESRI_102004.dbf
├── wind_summary_pts_ESRI_102004.prj
├── wind_summary_pts_ESRI_102004.shp
├── wind_summary_pts_ESRI_102004.shx
└── zonal_stats.csv

Note that the name of the root directory contains the name of the variable that was interpolated (“wind”), the interpolation method (“invdist”), and the resolution of the interpolation (1000 m).

Here is a screenshot of the resulting interpolated raster with overlain station points:

Zonal statistics and resampling of interpolated bias surfaces¶

The gridwxcomp.spatial.interpolate function will produce a second raster for each specified variable that is interpolated. This raster is always reprojected to the WGS 84 geographic reference system and then bilinearly resampled to the “output_data_resolution” defined in the configuration file. In this example it was resampled to 0.1 degrees which was the same resolution as the grid shapefile produced by gridwxcomp.spatial.make_grid. The WGS 84 geographic reference system is always used as the reference system for the grid shapefile generation. Being in the same geographic coordinate reference system allows for using the grid to be used for computing zonal statistics. The WGS 84 resampled raster files can be distinguished from the interpolated files as they do not have a suffix signifying a coordinate reference system authority and code such as “…_ESRI_XXXXX.tif” or “…_EPSG_XXXX.tif”.

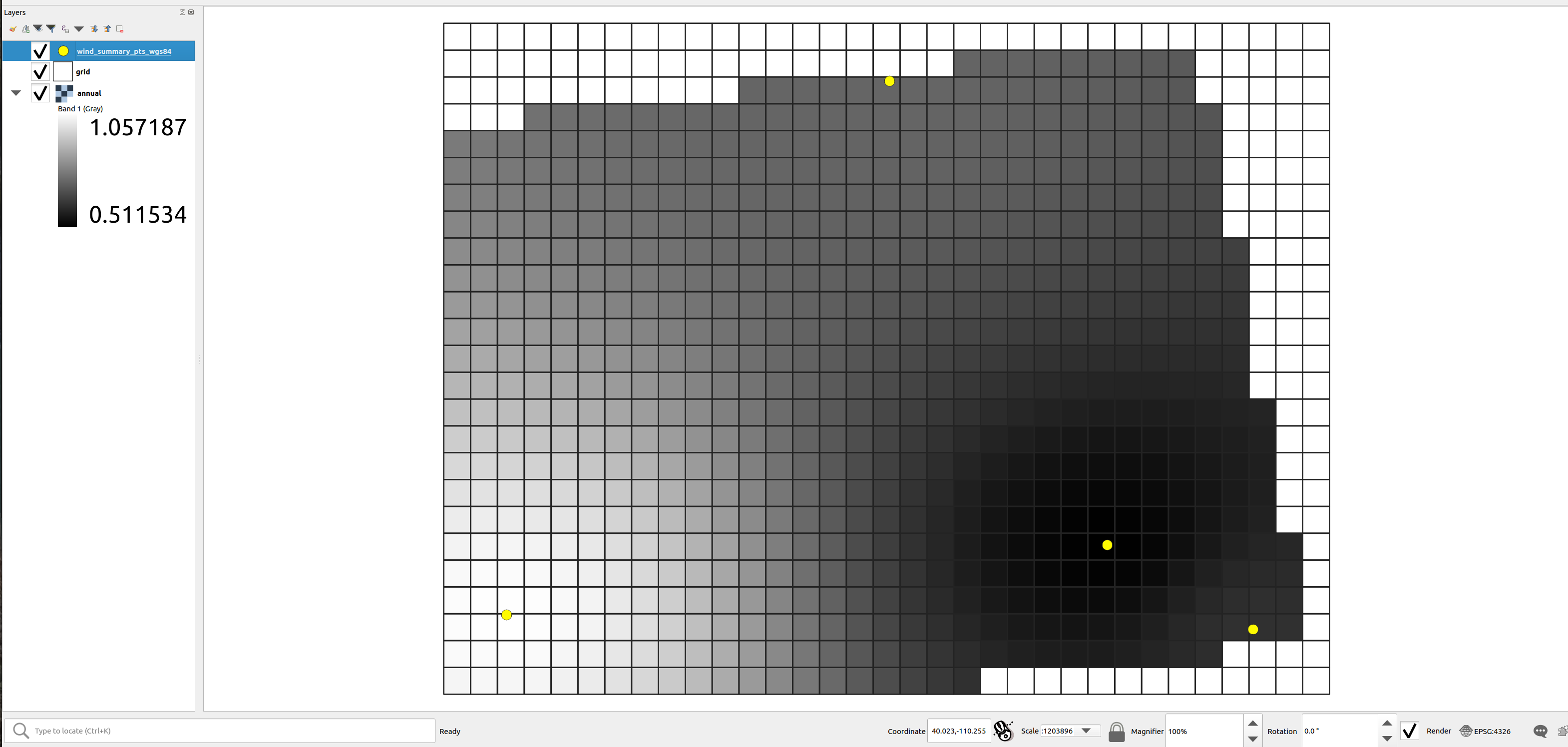

Here is a screenshot of the fishnet grid produced eariler in the tutorial (see Making a fishnet polygon (grid) around stations) and the resampled raster in WGS 84:

_images/resampled_annual_mean_with_grid.png

Hint

The interpolation in this example was performed in the Lambert Conformal Conic projected coordinate reference system, then it was reprojected into the WGS 84 space. When the raster is reprojected it distorts the image with respect to the original bounding coordinates that are used to clip the reprojected raster and to build the fishnet grid. This would vary depending on how much distortion exists between WGS 84 and the specified interpolation projection. To get a larger area covered in the resampled raster it is advised to use a larger bounding area, with a buffer around the outer station locations.

In this example the grid resolution and the resampling resolution of the interpolated surfaces are the same, if that is the case we can see that the grid and rasters snap to one another. However it may be useful to create the grid at a different resolution depending on the application of the zonal statistics (zonal means). Note that in this example the zonal statistics were saved to a CSV file, the outputs of which are simply a zonal average for each grid cell ID:

# here are the first cells zonal results from the grid
pd.read_csv('test_data_bias_results/spatial/wind_invdist_1000_meters/zonal_stats.csv')[:10]

	GRID_ID	annual
0	1000000	NaN
1	1000001	NaN
2	1000002	NaN
3	1000003	NaN
4	1000004	0.773542
5	1000005	0.780634
6	1000006	0.789373
7	1000007	0.799754
8	1000008	0.811946
9	1000009	0.826092

Note

The grid cell IDs created by the gridwxcomp.spatial.make_grid function assign the first cell in the upper left giving it a value of 1000000 and this increments by one moving down the first column (left most) then moves to the next column and continues down, from left to right.

Estimates and residuals between point data and interpolated surfaces¶

One additional computation that occurs each time the gridwxcomp.spatial.interpolate function is used, is the calculation of point estimates and residuals for the monthly, seasonal, and annual bias ratios with respect to the interpolated rasters. In other words, the bias ratios (or temperature differences) that were calculated by the gridwxcomp.calc_bias_ratios function at the point locations are compared to the interpolated surfaces, and at the point locations, the interpolated values are extracted from the raster surfaces and the residuals are calculated:

\[residual = interpolated - station~ calculation.\]

The point estimates and residuals are then added to the summary CSV file that is within the interpolation folder and in the copy of the reprojected point shapefile. In this case these are the files:

'test_data_bias_results/spatial/wind_invdist_1000_meters/wind_summary_comp_all_yrs.csv'

and the shapefile:

'test_data_bias_results/spatial/wind_invdist_1000_meters/wind_summary_pts_ESRI_102004.shp'

Here is an example of the newly calculated estimates and residuals which are distinguised by the “_res” and “_est” suffixes:

df = pd.read_csv('test_data_bias_results/spatial/wind_invdist_1000_meters/wind_summary_comp_all_yrs.csv', index_col='STATION_ID')
df[['annual_mean', 'annual_est', 'annual_res']]

	annual_mean	annual_est	annual_res
STATION_ID
Bluebell (Neola Area)	0.728636	0.728635	-3.342862e-07
Loa	1.058695	1.058690	-5.699448e-06
Bedrock	0.616712	0.616711	-7.578612e-07
Castle Valley near Moab	0.509929	0.509935	5.979035e-06

In this case, the interpolated surface is nearly identical to the point bias results (residuals near zero) because no smoothing parameters were introduced in the inverse distance weighting algorithm. If we rerun the spatial interpolation and introduce smoothing:

# parameters for gdal grid's inverse distance weighting which will result
# in not honoring the station's values used to interpolate as an example to
# illustrate the calculated point estimates and residuals from the interpolated surface:
params = {'power':0.5, 'smooth':50}
spatial.interpolate(bias_ratios_file, conus404_config, layer="annual", params=params)

# now view the same results:
df = pd.read_csv('test_data_bias_results/spatial/wind_invdist_1000_meters/wind_summary_comp_all_yrs.csv', index_col='STATION_ID')
df[['annual_mean', 'annual_est', 'annual_res']]

	annual_mean	annual_est	annual_res
STATION_ID
Bluebell (Neola Area)	0.728636	0.727750	-0.000885
Loa	1.058695	1.006191	-0.052504
Bedrock	0.616712	0.625107	0.008395
Castle Valley near Moab	0.509929	0.544533	0.034604

With these smoothing parameters and a smaller power parameter for inverse distance weighting we get significant larger interpolated error or point residuals.

Extra tips and tricks for interpolation¶

In addition to the ability to interpolate the mean bias ratios or differences between paired station and gridded data, the gridwxcomp.spatial.interpolate function can also be used to perform 2-D interpolation of the other statistics that are calculated by gridwxcomp, see Step 3: Calculate monthly, seasonal, and annual station:gridded biases and statistics.

For example, we could look at the spatial distribution of the interannual variability (coefficient of variation) in the growing season station:grid wind ratios (remember, in this example we have only looked at wind) by running the following:

spatial.interpolate(bias_ratios_file, conus404_config, layer="grow_cv")

The resulting interpolated surface looks like this:

This result shows that the highest interannual variation in the growing season station:gridded bias relative to the mean bias is found in the northern most weather station.

To quickly run the full spatial interpolation for all the time periods aggregated by gridwxcomp one can use the layers="all" argument:

spatial.interpolate(bias_ratios_file, conus404_config, layer="all")

Here are a few other useful attributes for custom workflows from object underlying the spatial module, the gridwxcomp.interpgdal.InterpGdal class:

from gridwxcomp import InterpGdal

# view all the default layer names of bias ratios run using the layers="all" option
# note the "_mean" suffix are removed from these variable names when interpolating
InterpGdal.default_layers

gives:

('Jan',
 'Feb',
 'Mar',
 'Apr',
 'May',
 'Jun',
 'Jul',
 'Aug',
 'Sep',
 'Oct',
 'Nov',
 'Dec',
 'grow',
 'annual',
 'summer')

To view all the interpolation algorithms available:

InterpGdal.interp_methods

gives:

('average', 'invdist', 'invdistnn', 'linear', 'nearest')

Or to view the parameter default values for a specific interpolation algorithm by name

InterpGdal.default_params.get('invdistnn')

{'power': 2,
 'smoothing': 0,
 'radius': 10,
 'max_points': 12,
 'min_points': 0,
 'nodata': -999}

Lastly, using the out_dir option to gridwxcomp.spatial.interpolate is useful for saving copies of interpolations which used different interpolation parameter values, such as power and smoothing parameters. By default, each time a new interpolation call is made, any existing files in the output directory will be overwritten unless you specify a new subdir using the out argument:

params = {'power':0.5, 'smooth':50}
out_dir = 'power_pt5_smooth_50'
spatial.interpolate(
        bias_ratios_file,
        conus404_config,
        out=out_dir,
        layer="annual",
        params=params)

params = {'power':1, 'smooth':50}
out_dir = 'power_1_smooth_50'
spatial.interpolate(
        bias_ratios_file,
        conus404_config,
        out=out_dir,
        layer="annual",
        params=params)

params = {'power':2, 'smooth':50}
out_dir = 'power_2_smooth_50'
spatial.interpolate(
        bias_ratios_file,
        conus404_config,
        out=out_dir,
        layer="annual",
        params=params)

Now we get the following file structure:

wind_invdist_1000_meters/
├── annual_ESRI_102004.tiff
├── annual.tiff
├── power_1_smooth_50
│   ├── annual_ESRI_102004.tiff
│   ├── annual.tiff
│   ├── residual_plots
│   │   └── annual_res.html
│   ├── wind_summary_comp_all_yrs.csv
│   ├── wind_summary_pts_ESRI_102004.cpg
│   ├── wind_summary_pts_ESRI_102004.dbf
│   ├── wind_summary_pts_ESRI_102004.prj
│   ├── wind_summary_pts_ESRI_102004.shp
│   └── wind_summary_pts_ESRI_102004.shx
├── power_2_smooth_50
│   ├── annual_ESRI_102004.tiff
│   ├── annual.tiff
│   ├── residual_plots
│   │   └── annual_res.html
│   ├── wind_summary_comp_all_yrs.csv
│   ├── wind_summary_pts_ESRI_102004.cpg
│   ├── wind_summary_pts_ESRI_102004.dbf
│   ├── wind_summary_pts_ESRI_102004.prj
│   ├── wind_summary_pts_ESRI_102004.shp
│   └── wind_summary_pts_ESRI_102004.shx
├── power_pt5_smooth_50
│   ├── annual_ESRI_102004.tiff
│   ├── annual.tiff
│   ├── residual_plots
│   │   └── annual_res.html
│   ├── wind_summary_comp_all_yrs.csv
│   ├── wind_summary_pts_ESRI_102004.cpg
│   ├── wind_summary_pts_ESRI_102004.dbf
│   ├── wind_summary_pts_ESRI_102004.prj
│   ├── wind_summary_pts_ESRI_102004.shp
│   └── wind_summary_pts_ESRI_102004.shx
├── residual_plots
│   └── annual_res.html
├── wind_summary_comp_all_yrs.csv
├── wind_summary_pts_ESRI_102004.cpg
├── wind_summary_pts_ESRI_102004.dbf
├── wind_summary_pts_ESRI_102004.prj
├── wind_summary_pts_ESRI_102004.shp
├── wind_summary_pts_ESRI_102004.shx
└── zonal_stats.csv

Note that the initial run with default parameters contains all the new sub directories that were named. That initial run also included zonal statistics, but the three new interpolations did not, hence they do not contain their own zonal_stats.csv file. Also, since the point residuals will change with each new interpolation method, copies of the summary CSV, residual bar charts, and the projected point shapefiles are made to each sub directory in addition to the newly generated interpolated surfaces.

Interactive graphics of paired station:gridded weather data¶

Once the data pairing had been completed between station and downloaded gridded data, gridwxcomp offers tools for generating time series and scatter plots of the paired data at daily and monthly timescales. These plots utilize the Bokeh Python package and allow the user to pan and zoom into the plots and are in HTML format. The timeseries plots of a set of variables (e.g., air temperature, solar radiation, wind speed, humidity, etc.) are ties to one another so that if one time series plot is zoomed in to a shorter time period, all the other variables will also zoom to the same scale. This is useful for identifying the interelationship between different climate variables and how they correspond with the station:gridded data bias.

Hint

The daily and monthly comparison plots can be run after downloading gridded data using the gridwxcomp.ee_download.download_grid_data and before running spatial mapping functions.

The daily plots are grouped by month, for example, all days in the month of January are concatenated from the starting date through the ending date in the paired time series. Here is an example.

# daily timeseries and scatter plots of all variables for each month of the year for all stations
plot.daily_comparison(formatted_input_file, conus404_config, gridded_dataset_name)

The above plot function would have generated the following file structure from the working directory:

daily_comp_plots/
├── Bedrock
│   ├── Bedrock_01_2013_2018.html
│   ├── Bedrock_02_2013_2018.html
│   ├── Bedrock_03_2013_2018.html
│   ├── Bedrock_04_2013_2018.html
│   ├── Bedrock_05_2013_2018.html
│   ├── Bedrock_06_2013_2018.html
│   ├── Bedrock_07_2013_2018.html
│   ├── Bedrock_08_2013_2018.html
│   ├── Bedrock_09_2013_2018.html
│   ├── Bedrock_10_2013_2018.html
│   ├── Bedrock_11_2013_2018.html
│   └── Bedrock_12_2013_2018.html
├── Bluebell(NeolaArea)
│   ├── Bluebell(NeolaArea)_01_2016_2018.html
│   ├── Bluebell(NeolaArea)_02_2016_2018.html
│   ├── Bluebell(NeolaArea)_03_2016_2018.html
│   ├── Bluebell(NeolaArea)_04_2016_2018.html
│   ├── Bluebell(NeolaArea)_05_2016_2018.html
│   ├── Bluebell(NeolaArea)_06_2016_2018.html
│   ├── Bluebell(NeolaArea)_07_2016_2018.html
│   ├── Bluebell(NeolaArea)_08_2016_2018.html
│   ├── Bluebell(NeolaArea)_09_2016_2018.html
│   ├── Bluebell(NeolaArea)_10_2016_2018.html
│   ├── Bluebell(NeolaArea)_11_2016_2018.html
│   └── Bluebell(NeolaArea)_12_2016_2018.html
├── CastleValleynearMoab
│   ├── CastleValleynearMoab_01_2015_2018.html
│   ├── CastleValleynearMoab_02_2015_2018.html
│   ├── CastleValleynearMoab_03_2015_2018.html
│   ├── CastleValleynearMoab_04_2015_2018.html
│   ├── CastleValleynearMoab_05_2015_2018.html
│   ├── CastleValleynearMoab_06_2015_2018.html
│   ├── CastleValleynearMoab_07_2015_2018.html
│   ├── CastleValleynearMoab_08_2015_2018.html
│   ├── CastleValleynearMoab_09_2015_2018.html
│   ├── CastleValleynearMoab_10_2015_2018.html
│   ├── CastleValleynearMoab_11_2015_2018.html
│   └── CastleValleynearMoab_12_2015_2018.html
└── Loa
    ├── Loa_01_2016_2018.html
    ├── Loa_02_2016_2018.html
    ├── Loa_03_2016_2018.html
    ├── Loa_04_2016_2018.html
    ├── Loa_05_2016_2018.html
    ├── Loa_06_2016_2018.html
    ├── Loa_07_2016_2018.html
    ├── Loa_08_2016_2018.html
    ├── Loa_09_2016_2018.html
    ├── Loa_10_2016_2018.html
    ├── Loa_11_2016_2018.html
    └── Loa_12_2016_2018.html

Note that for each station there is a sub directory and for each station there are 12 files, one for each month of the year, and the start and end years of the paired data used for each plot are part of the file name, i.e., “[station]_[month]_[start_year]_[end_year].html”.

Here is what the Castle Valley near Moab sites plot looks like for the month of June (“CastleValleynearMoab_06_2015_2018.html”):

_images/CastleValleynearMoab_06_2015_2018.png

Note

The daily and monthly scatter plots shown in the tutorial have been converted to png images and have lost their interactive functions in order to avoid the contents running off the page in web browsers.

As seen above, the daily and monthly comparison plots include scatter plots of the paired variables supported, including the least squares linear regression slope forced through the origin as a measure of bias between the station and gridded data.

In addition to the daily comparison plots, gridwxcomp offers a similar plotting function which compared aggregated monthly data from the paired station:gridded time series, for a variety of weather variables. These plots include each month of the year in them, in other words they do not only show the paired data for a given month per plot like the daily plots do. These plots thus show the seasonal variability in the bias at the monthly scale.

plot.monthly_comparison(formatted_input_file, conus404_config, gridded_dataset_name)

In this case the following files are generated:

monthly_comp_plots/
├── Bedrock.html
├── Bluebell(NeolaArea).html
├── CastleValleynearMoab.html
└── Loa.html

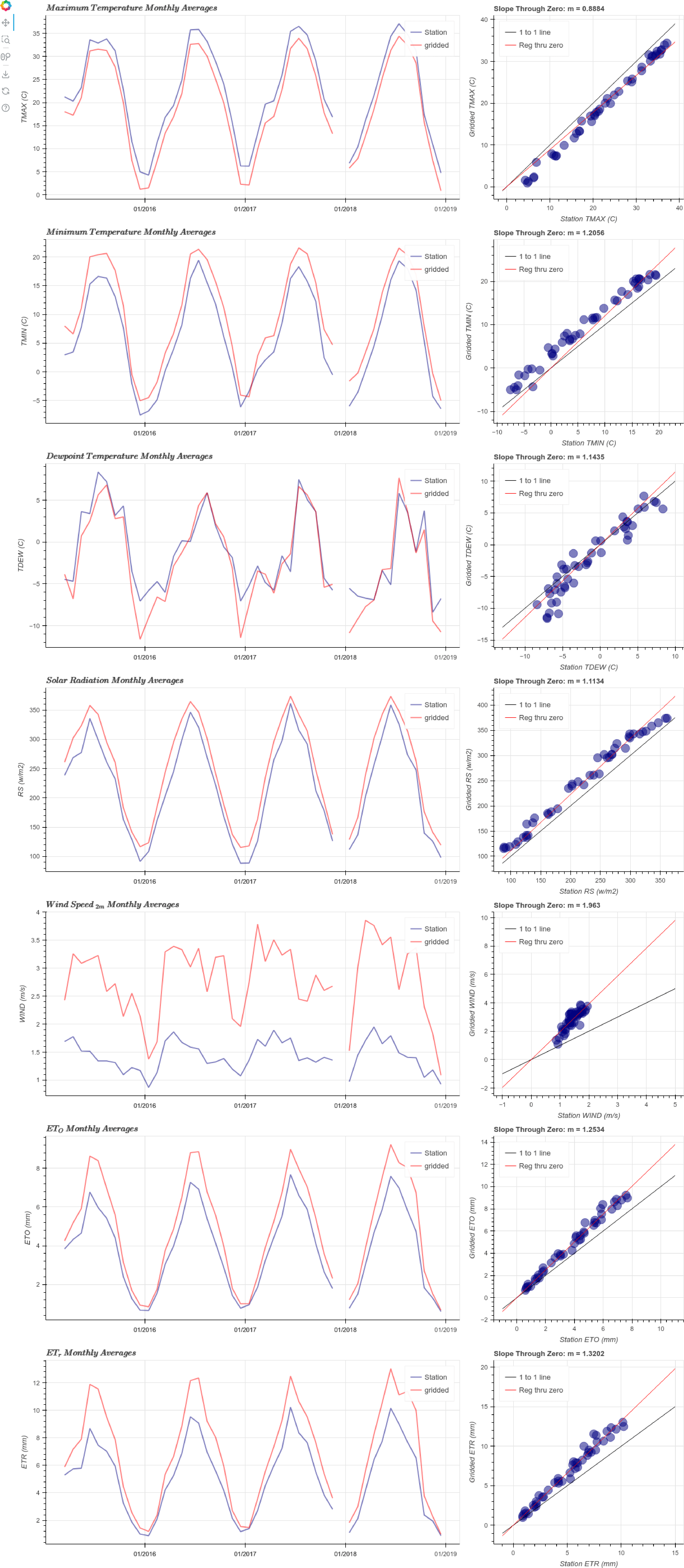

And here is what the Castle Valley near Moab monthly plot file looks like:

In addition to the daily and monthly comparisons, the gridwxcomp.plot submodule has a tool for comparing station bias results using a bar chart. This is the gridwxcomp.plot.station_bar_plot function and it allows one to compare any of the statistics computed by the gridwxcomp.calc_bias_ratios.calc_bias_ratios function across stations. It is also used by the gridwxcomp.spatial.interpolate function for showing the station residuals. Here is an example comparing the standard deviation of annual March station:gridded bias:

plot.station_bar_plot(bias_ratios_file, 'Mar_stdev')

This file was saved to

'test_data_bias_results/station_bar_plots/Mar_stdev.html'

and here it is:

Bokeh Plot

This concludes the tutorial for gridwxcomp, please see the API Reference for detailed information on individual functions and classes and their parameters.

References¶

[Allen2005]
R.G. Allen, I.A. Walter, R.L. Elliott, T.A. Howell, D. Itenfisu, M.E. Jensen, and R.L. Snyder, The ASCE Standardized Reference Evapotranspiration Equation, American Society of Civil Engineers, 2005. https://doi.org/10.1061/9780784408056.

Tutorial¶

Input data files and formatting requirements¶

The configuration file¶

Weather variables processed by gridwxcomp¶

The weather station’s data files¶

The weather station’s metadata file¶

Step 1: Parse input data¶

Step 2: Download gridded timeseries data from Google Earth Engine¶

Step 3: Calculate monthly, seasonal, and annual station:gridded biases and statistics¶

Spatial mapping and interpolation of station:gridded bias results¶

Mapping point data¶

Making a fishnet polygon (grid) around stations¶

Spatial interpolation of point bias¶

Zonal statistics and resampling of interpolated bias surfaces¶

Estimates and residuals between point data and interpolated surfaces¶

Extra tips and tricks for interpolation¶

Interactive graphics of paired station:gridded weather data¶

References¶

Weather variables processed by `gridwxcomp`¶
